place_t Class Reference

Proxy of C++ place_t class.

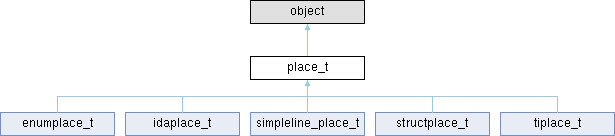

Inheritance diagram for place_t:

Public Member Functions
	__init__ (self, *args, **kwargs)
"uval_t"	touval (self, *args)
	touval(self, ud) -> uval_t Map the location to a number.
"place_t *"	clone (self, *args)
	clone(self) -> place_t Clone the location.
"void"	copyfrom (self, *args)
	copyfrom(self, _from) Copy the specified location object to the current object.
"place_t *"	makeplace (self, *args)
	makeplace(self, ud, x, lnnum) -> place_t Map a number to a location.
"int"	compare (self, *args)
	compare(self, t2) -> int Deprecated.
"void"	adjust (self, *args)
	adjust(self, ud) Adjust the current location to point to a displayable object.
"bool"	prev (self, *args)
	prev(self, ud) -> bool Move to the previous displayable location.
"bool"	next (self, *args)
	next(self, ud) -> bool Move to the next displayable location.
"bool"	beginning (self, *args)
	beginning(self, ud) -> bool Are we at the first displayable object?.
"bool"	ending (self, *args)
	ending(self, ud) -> bool Are we at the last displayable object?.
"void"	serialize (self, *args)
	serialize(self) Serialize this instance.
"int"	id (self, *args)
	id(self) -> int Get the place's ID (i.e., the value returned by register_place_class())
"char const *"	name (self, *args)
	name(self) -> char const * Get this place type name.
"ea_t"	toea (self, *args)
	toea(self) -> ea_t Map the location to an ea_t.
"bool"	rebase (self, *args)
	rebase(self, arg2) -> bool Rebase the place instance
"place_t *"	enter (self, *args)
	enter(self, arg2) -> place_t Visit this place, possibly 'unhiding' a section of text.
"void"	leave (self, *args)
	leave(self, arg2) Leave this place, possibly 'hiding' a section of text that was previously expanded (at enter()-time.)
"int"	compare2 (self, *args)
	compare2(self, t2, arg3) -> int Compare two locations except line numbers (lnnum).
"bool"	deserialize (self, *args)
	deserialize(self, _in) -> bool De-serialize into this instance.
"PyObject *"	generate (self, *args)
	generate(self, ud, maxsize) -> ([str, ...], int, int, int) Generate text lines for the current location.

Static Public Member Functions
"idaplace_t *"	as_idaplace_t (*args)
	as_idaplace_t(p) -> idaplace_t
"enumplace_t *"	as_enumplace_t (*args)
	as_enumplace_t(p) -> enumplace_t
"structplace_t *"	as_structplace_t (*args)
	as_structplace_t(p) -> structplace_t
"simpleline_place_t *"	as_simpleline_place_t (*args)
	as_simpleline_place_t(p) -> simpleline_place_t
"tiplace_t *"	as_tiplace_t (*args)
	as_tiplace_t(p) -> tiplace_t

Protected Member Functions
"void"	_print (self, *args)
	_print(self, ud)

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
	lnnum = property(_ida_kernwin.place_t_lnnum_get, _ida_kernwin.place_t_lnnum_set, doc=)

Constructor & Destructor Documentation

__init__()

__init__	(		self,
		*	args,
		**	kwargs )

Reimplemented in enumplace_t, idaplace_t, simpleline_place_t, structplace_t, and tiplace_t.

Member Function Documentation

_print()

"void" _print ( self, * args )

protected

Parameters

ud: void *

adjust()

"void" adjust	(		self,
		*	args )

This function validates the location and makes sure that it points to an existing object. For example, if the location points to the middle of an instruction, it will be adjusted to point to the beginning of the instruction.

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

as_enumplace_t()

"enumplace_t *" as_enumplace_t ( * args )

static

Parameters

p

place_t *

as_idaplace_t()

"idaplace_t *" as_idaplace_t ( * args )

static

Parameters

p

place_t *

as_simpleline_place_t()

"simpleline_place_t *" as_simpleline_place_t ( * args )

static

Parameters

p

place_t *

as_structplace_t()

"structplace_t *" as_structplace_t ( * args )

static

Parameters

p

place_t *

as_tiplace_t()

"tiplace_t *" as_tiplace_t ( * args )

static

Parameters

p

place_t *

beginning()

"bool" beginning	(		self,
		*	args )

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

Returns

: true if the current location points to the first displayable object

clone()

"place_t *" clone	(		self,
		*	args )

Returns

: a pointer to a copy of the current location in dynamic memory

compare()

"int" compare	(		self,
		*	args )

Please consider compare2(const place_t *, void *) instead.

Parameters

t2	(C++: const place_t *) place_t const *

compare2()

"int" compare2	(		self,
		*	args )

This function is used to organize loops. For example, if the user has selected an range, its boundaries are remembered as location objects. Any operation within the selection will have the following look: for ( loc=starting_location; loc < ending_location; loc.next() ) In this loop, the comparison function is used.

Parameters

t2	(C++: const place_t *) the place to compare this one to.
arg3	void *

copyfrom()

"void" copyfrom	(		self,
		*	args )

Parameters

from	(C++: const place_t *) place_t const *

deserialize()

"bool" deserialize	(		self,
		*	args )

'pptr' should be incremented by as many bytes as de-serialization consumed.

Parameters

pptr	(C++: const uchar **) pointer to a serialized representation of a place_t of this type.

Returns

: whether de-serialization was successful

ending()

"bool" ending	(		self,
		*	args )

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

Returns

: true if the current location points to the last displayable object

enter()

"place_t *" enter	(		self,
		*	args )

If entering that place required some expanding, a place_t should be returned that represents that section, plus some flags for later use by 'leave()'.

Parameters

out_flags

flags to be used together with the place_t that is returned, in order to restore the section to its original state when leave() is called.

Returns

: a place_t corresponding to the beginning of the section of text that had to be expanded. That place_t's leave() will be called with the flags contained in 'out_flags' when the user navigates away from it.

generate()

"PyObject *" generate	(		self,
		*	args )

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t
maxsize	(C++: int) the maximum number of lines to generate

Returns

: number of generated lines

id()

"int" id	(		self,
		*	args )

Returns

: the id

leave()

"void" leave	(		self,
		*	args )

Parameters

arg2

uint32

makeplace()

"place_t *" makeplace	(		self,
		*	args )

When the user clicks on the scrollbar and drags it, we need to determine the location corresponding to the new scrollbar position. This function is used to determine it. It builds a location object for the specified 'x' and returns a pointer to it.

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t
x	(C++: uval_t) number to map
lnnum	(C++: int) line number to initialize 'lnnum'

Returns

: a freshly allocated object. See also PCF_MAKEPLACE_ALLOCATES

name()

"char const *" name	(		self,
		*	args )

All instances of a given class must return the same string.

Returns

: the place type name. Please try and pick something that is not too generic, as it might clash w/ other plugins. A good practice is to prefix the class name with the name of your plugin. E.g., "myplugin:srcplace_t".

next()

"bool" next	(		self,
		*	args )

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

Returns

: success

prev()

"bool" prev	(		self,
		*	args )

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

Returns

: success

rebase()

"bool" rebase	(		self,
		*	args )

Parameters

arg2	segm_move_infos_t const &

Returns

: true if place was rebased, false otherwise

serialize()

"void" serialize	(		self,
		*	args )

It is fundamental that all instances of a particular subclass of of place_t occupy the same number of bytes when serialized.

toea()

"ea_t" toea	(		self,
		*	args )

Returns

: the corresponding ea_t, or BADADDR;

touval()

"uval_t" touval	(		self,
		*	args )

This mapping is used to draw the vertical scrollbar.

Parameters

ud	(C++: void *) pointer to user-defined context data. Is supplied by linearray_t

Property Documentation

lnnum

lnnum = property(_ida_kernwin.place_t_lnnum_get, _ida_kernwin.place_t_lnnum_set, doc=)

static

thisown

thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

static

---

The documentation for this class was generated from the following file:

• ida_kernwin.py
